How to drill a pilot hole

How to drill pilot holes in wood

While making pilot holes helps prevent your wood board—solid or MDF—from splitting or breaking when you drive nails or screws, smaller holes also mean you’ll use less force when nailing or screwing. hardwoodslike maple and oak, and keep the fastener from bending or angling out of line during insertion. Here’s how to drill a pilot hole in wood.

Step 1: Choose the right drill bit.

The key to drilling a good pilot hole, one that is wide enough for you to insert the fastener with ease but not so wide that it won’t move, is to choose the right size drill bit.

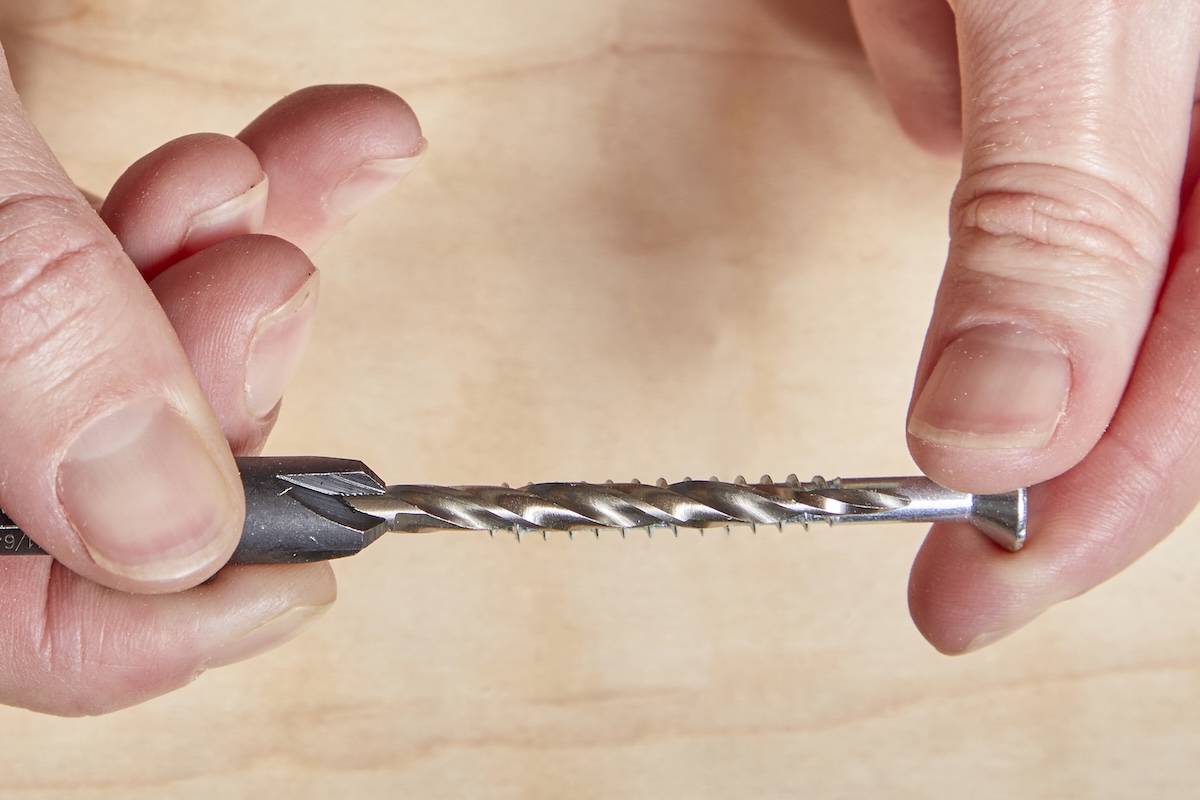

Measure the pilot hole drill bit

To make a pilot hole for the nail, the correct drill bit is slightly smaller than the wing of the nail. However, when working with hardwood, make sure that the shank diameter of the drill bit is the same as the shank diameter of the screw. If you need to make pilot holes for screws in softwood, the diameter of the drill bit should be 80 percent larger than the screw body, not including the threads. When in doubt and you don’t have an exact match, go with a pilot hole drill bit that is slightly smaller than the screw body.

Pilot hole size chart

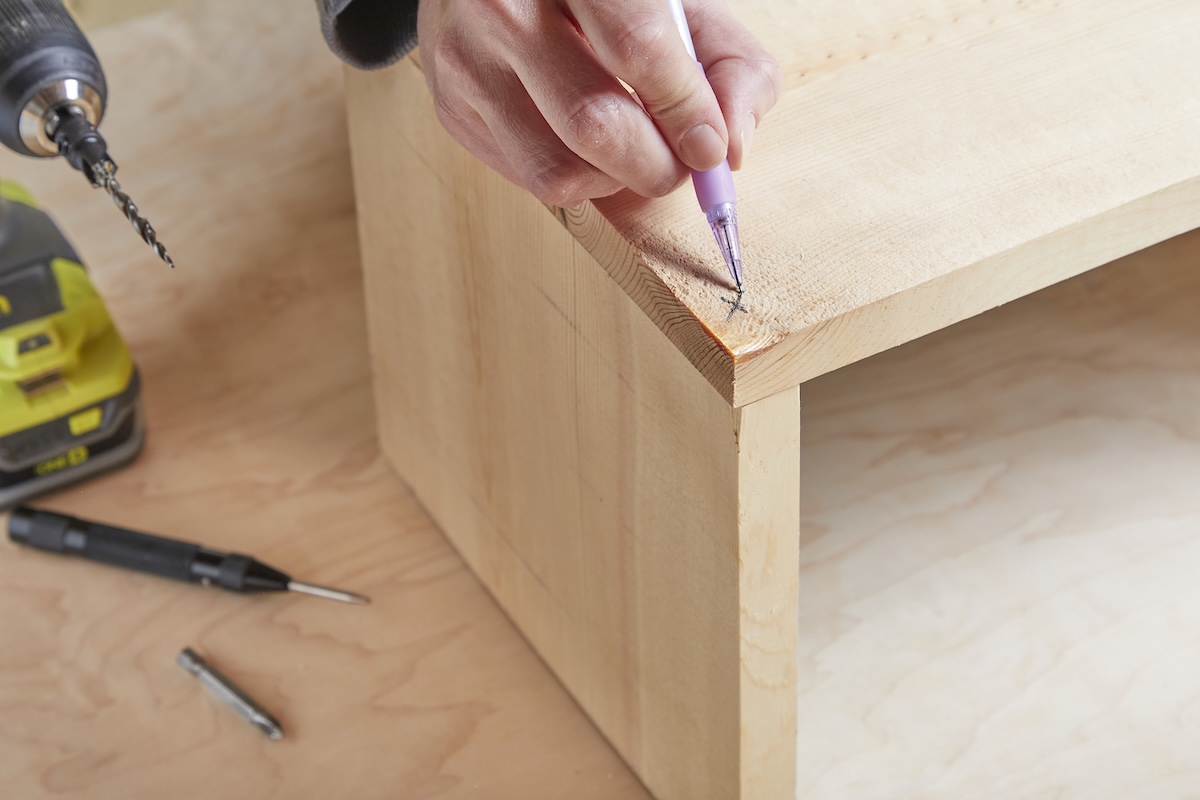

Step 2: Mark the pilot hole location.

The old saying goes, “Measure twice, cut once.” That truism can also apply to drilling pilot holes: Before touching the drill bit to the wood, take the time to carefully measure and mark the spot where the pilot hole is. (Don’t try to just eyeball it or measure and rely on your finger to mark the correct location – either method can set you up incorrectly.)

Mark the spot in pencil. Or, better yet, make an “X” with it painter’s tape in place for your nails or screws. The tape will strengthen the wood and provide additional protection against possible cracking.

Step 3: Clamp the boards together.

You can also clamp or slightly squeeze the top board together to prevent it from slipping or sliding when you drill. Wood glue between the two boards (bonus: this strengthens the joint) and then Clamp This additional tool frees both of your hands to ensure that your The drill is perfectly perpendicular to the wood.

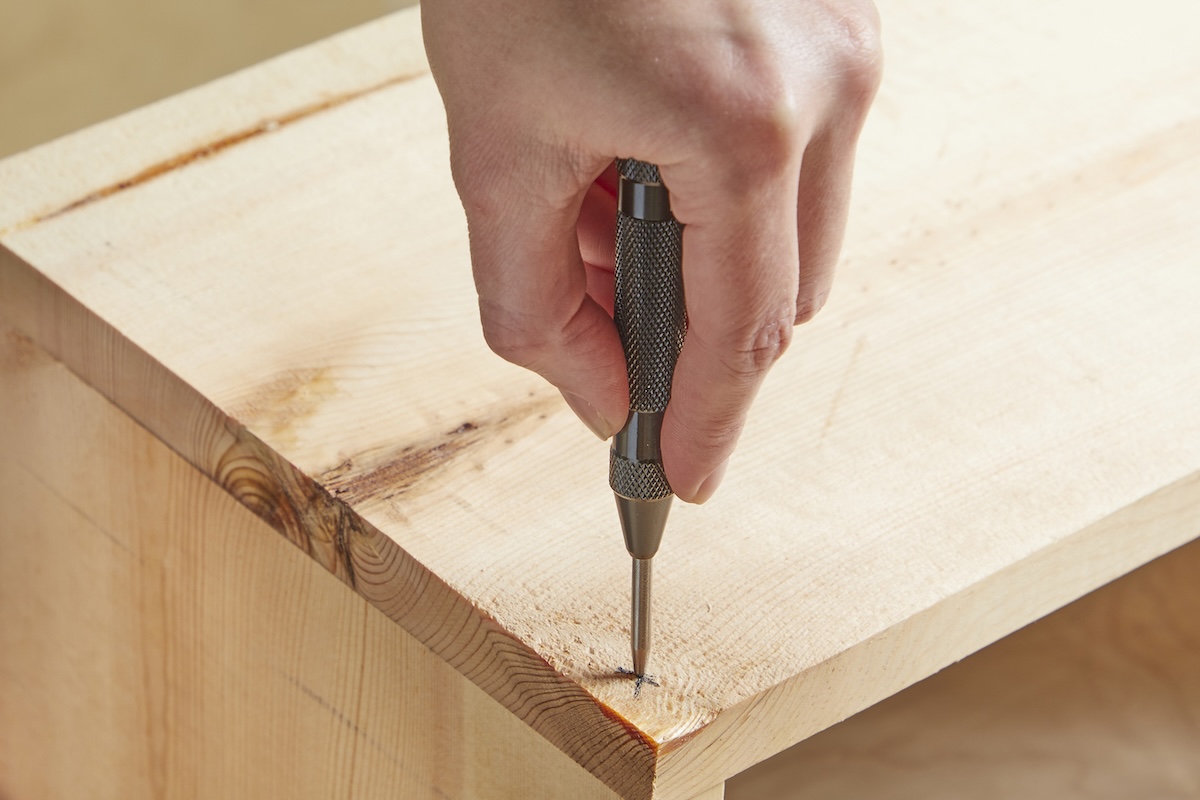

Step 4: Make an indent with a scratch awl.

Once you’ve determined where your pilot hole will go, use the tip of a nail or a scratch awl to make a slight indentation in the spot. First, pierce the surface with the scratch awl tip and then tap the head of the scratch awl with a hammer to create an indent. This indent will keep your drill from slipping out of place once you start drilling the hole.

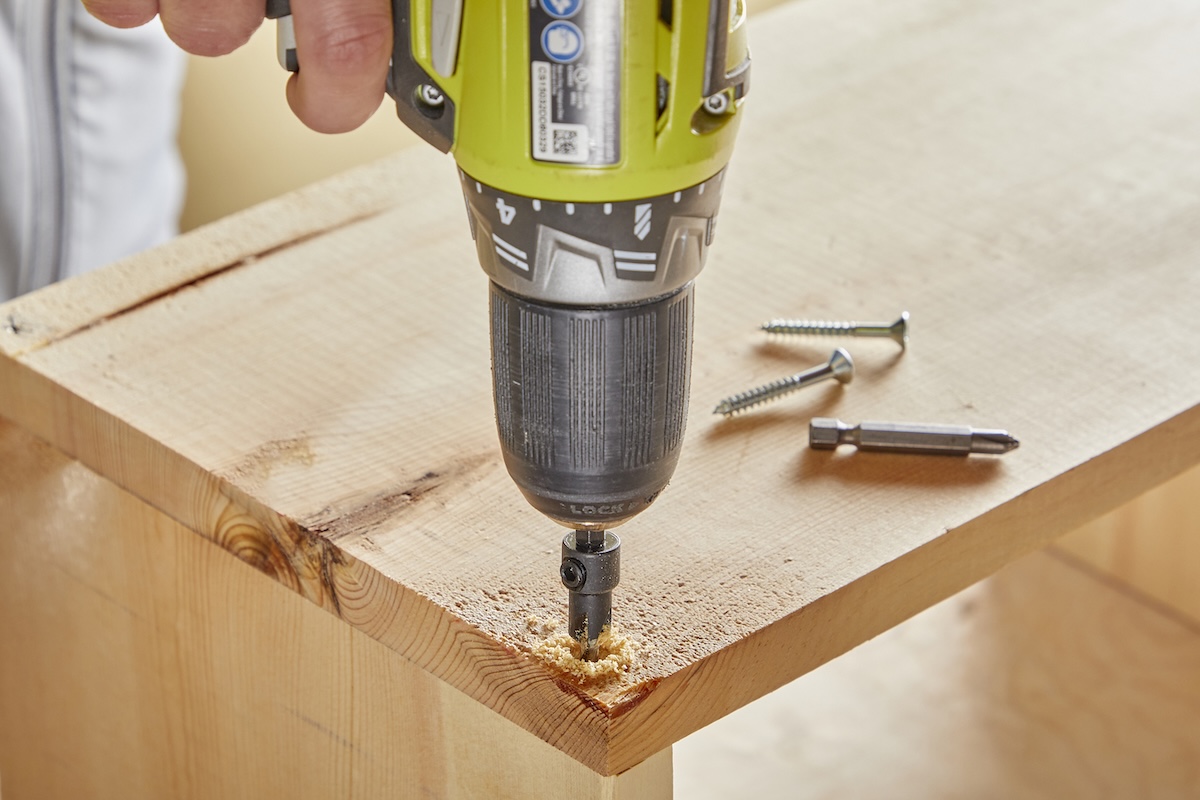

Step 5: Drill the pilot hole.

Place the tip of your drill bit into the indentation you made, Holding the drill So the bit is perpendicular to the wood. Start by setting your exercise to a low speed. Accelerate slightly if you feel confident that you can control the exercise; Otherwise, stay at low speed.

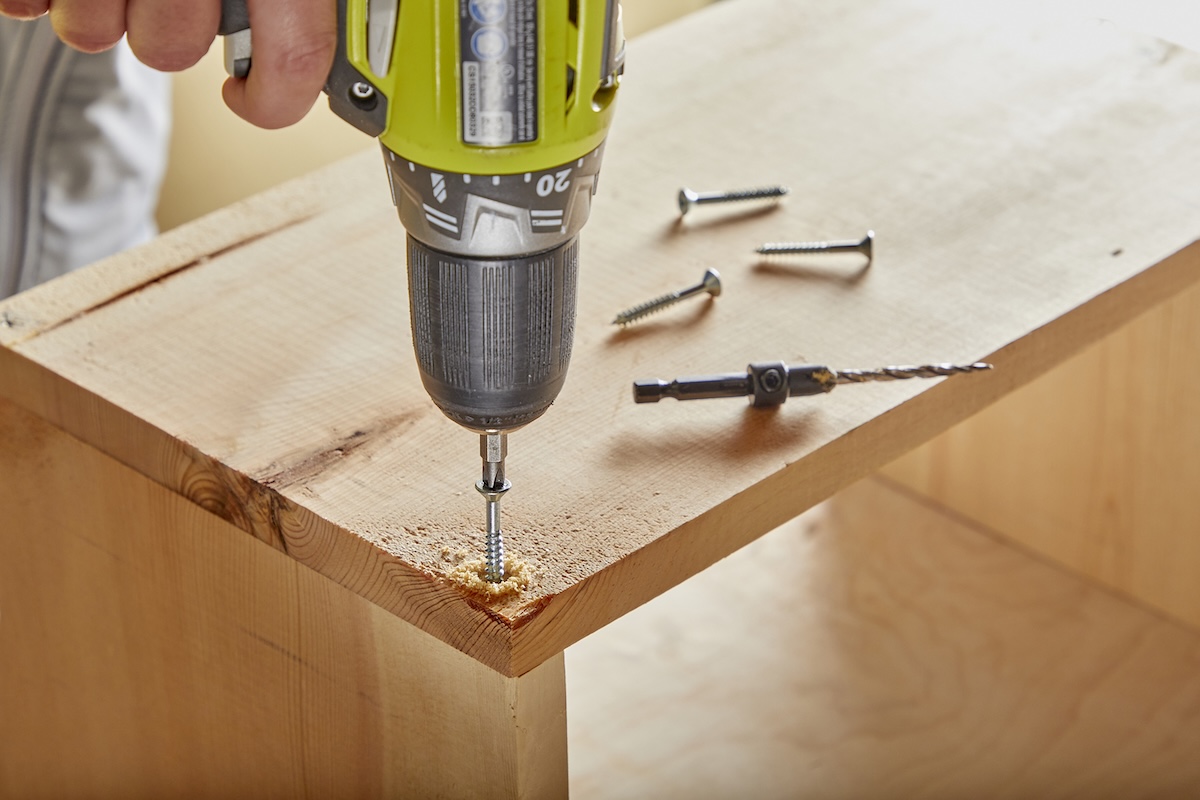

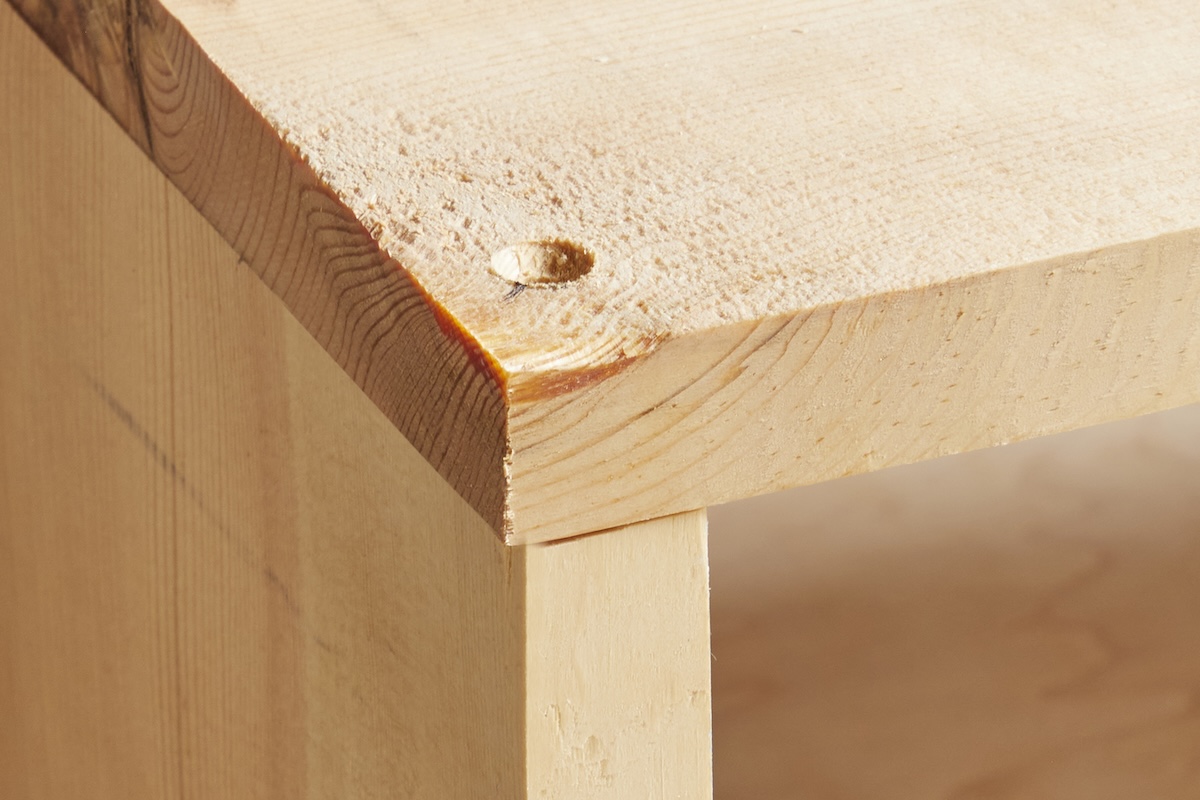

Drill until the depth of your pilot hole is the same length as your screw or nail. Once you hit the right depth, slowly pull the drill bit out of the hole while continuing to hold the drill perpendicular to the wood. Now you can go ahead and attach your nails or screws.

Tip: Many experienced DIYers can fathom the depth of a pilot hole, but if you’re not that experienced yet, you Use a drill Stop to mark the correct depth. In a pinch, you can also use some tape or twist-ties to mark the length of the screw on the drill bit.

How to make a pilot hole without a drill

When a A power drill/driver makes quick work In both drilling pilot holes and inserting screws, not everyone has the same hand. In a pinch, you can still create a pilot hole by selecting a nail the same size as the body of your screw, and then carefully hammering it straight into the wood to the proper depth before driving it back. Then, use a manual or powered screwdriver to complete the rest of the project.

When to drill pilot holes

Pilot holes simplify many home improvement projects. While they are not always necessary for every screw or nail and softwoods, it is generally a good idea to use a pilot hole whenever the finished surface will be visible after the project is complete. Here are a few examples.

• When working with hardwoods
• When working with thin materials
• Before attaching the long fastener
• If you want the board to be perfectly aligned
• If you want to ensure that the board will be less likely to loosen over time
• When the fastener is within about 1 inch of the edge of the board
• If you are worried about splitting or cracking
• If you are concerned about the potential Remove one screw

Final thoughts

Drilling a pilot hole only takes a few minutes, but it can save you a lot of time and money in replacing cracked or chipped boards. To be successful, it is important to select the correct size drill bit for the material and type of fastener so that the fastener can securely attach the board. While drilling a pilot hole only takes a moment, those guide holes can make nailing or screwing your project together much easier.
